Audio Capture
FlowPick automatically detects audio content on webpages, supporting common streaming formats (HLS/DASH) and direct audio files. Audio resources are displayed in a dedicated tab in the popup window for easy filtering and download.
Detection Principles
Audio detection uses the same webRequest API as video detection:
- Request Monitoring: Extension intercepts all network requests, identifies audio resources based on Content-Type
- Manifest Parsing: For HLS/DASH streams, parses manifest to extract audio track info
- Metadata Extraction: Extracts basic metadata from response headers (file size, format, etc.)

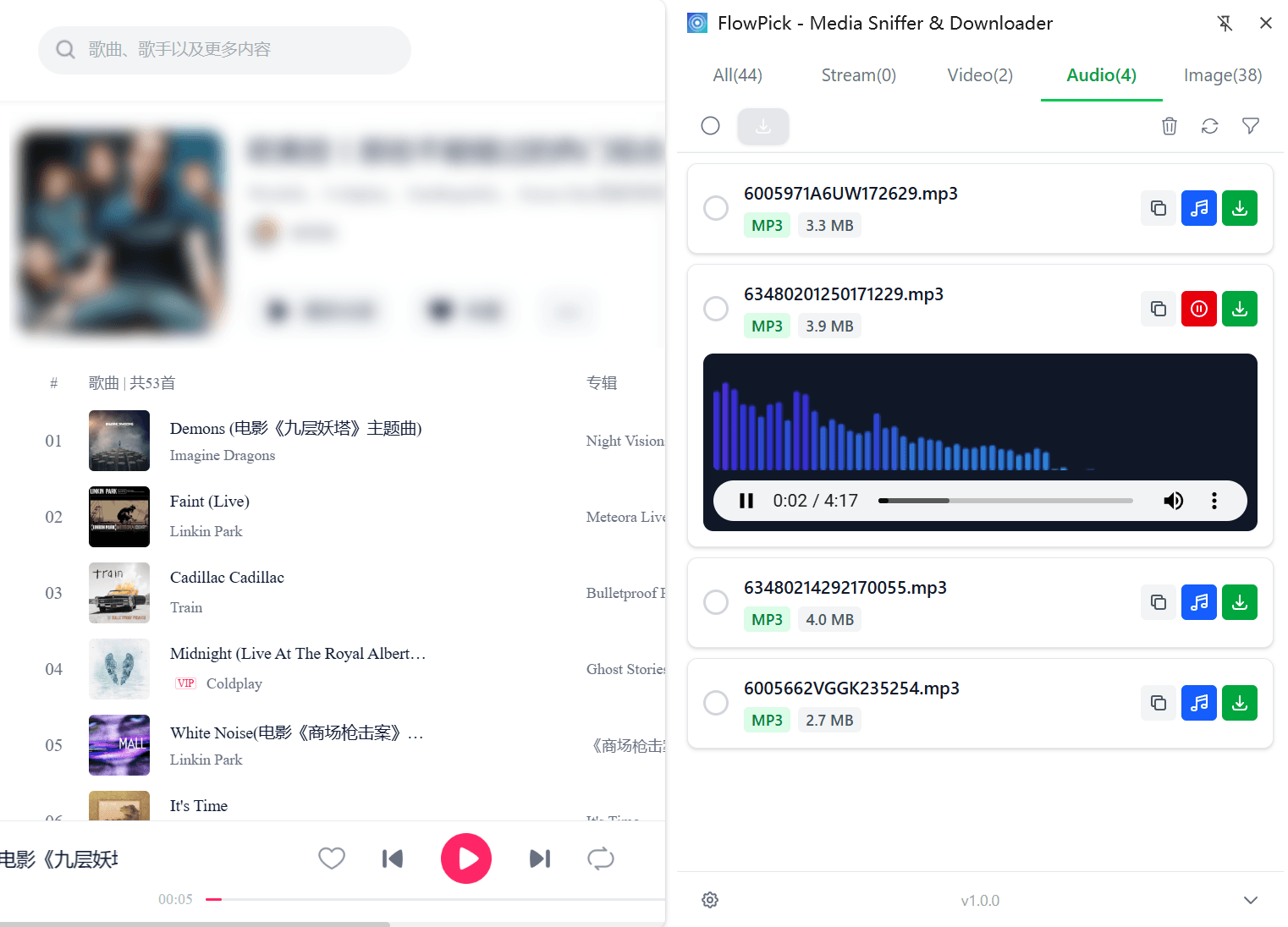

- Resource Display: Detected audios are listed under the dedicated "Audio" tab
Detection Timing:
- After extension installation, need to refresh target page before detection can begin
- Audio usually loads when user clicks play; recommend playing for a few seconds before opening extension
- Some websites use lazy loading; need to trigger playback before audio can be detected
Supported Audio Formats
Streaming Protocols
| Protocol | Manifest File | Content-Type | Description |
|---|---|---|---|
| HLS | .m3u8 | application/x-mpegurl | HLS audio stream |
| DASH | .mpd | application/dash+xml | DASH audio stream |
Direct Audio Files
| Content-Type | Extension | Description |
|---|---|---|
audio/mpeg | .mp3 | Most universal audio format |
audio/mp4 | .m4a | AAC container |
audio/webm | .weba | WebM audio |
audio/ogg | .ogg | Ogg Vorbis |
audio/wav | .wav | Uncompressed WAV |
audio/flac | .flac | Lossless FLAC |
audio/aac | .aac | Pure AAC |
audio/x-m4a | .m4a | iTunes audio |
Podcast Detection
Podcast platforms typically use standard audio formats (MP3/AAC), making them easy to detect with FlowPick.
Podcast Platform Support
| Platform | Format | Notes |
|---|---|---|
| Apple Podcasts | MP3/M4A | Standard RSS feed |
| Spotify | Encrypted | May not be directly detectable |
| Google Podcasts | MP3 | Standard format |
| Independent Podcasts | MP3/AAC | Usually direct links |
| YouTube Music | DASH/HLS | Video+audio separated |
Batch Download of Podcast Episodes
Podcast list pages often contain multiple episodes that can be downloaded in batches:
- Open podcast list page
- Play each episode briefly to trigger audio loading (some sites auto-load)
- Open FlowPick, switch to Audio tab
- Select needed episodes using checkboxes
- Click "Download Selected" button
Metadata Extraction
When detecting audio files, FlowPick extracts available metadata:
| Metadata | Source | Example |
|---|---|---|
| File Size | Content-Length header | 12.5 MB |
| MIME Type | Content-Type header | audio/mpeg |
| File Name | URL path inference | episode-001.mp3 |
| Source Domain | Request URL | cdn.example.com |
Limitations:
- Cannot extract ID3 tags (artist, album, duration) without downloading file
- Cannot get actual audio duration without parsing entire file
- Some servers don't return Content-Length header
Download Behavior
Direct Audio Files
For direct audio files (MP3, M4A, etc.):
- Browser downloads original file directly
- No conversion or processing needed
- File saved to default download directory
Streaming Audio
For HLS/DASH audio streams:
- Parse manifest to get fragment list
- Concurrently download all fragments
- Merge fragments into single file
- If output format is MP4/M4A, perform remuxing
Use Cases
Background Music Download
Many websites use background music (BGM):
- Game websites' background music
- Personal homepage's ambient music
- Product demo pages' background music
- Interactive media's sound effects
These audios are usually loaded when page opens, can be detected immediately after refreshing page.
Podcast Episode Collection
Collect favorite podcast episodes locally:
- Open episode page
- Play briefly to trigger audio load
- Detect and download in FlowPick
Audiobook Download
Audiobook platforms usually provide audio files:
- Usually standard MP3/M4A format
- Sometimes split into chapters
- Can be downloaded chapter-by-chapter
Live Stream Recording
Some live platforms provide recorded replay:
- Replays usually stored as standard audio files
- Can be detected and downloaded like regular audio files
- Some platforms use special protection
Best Practices
Filter Unwanted Resources
Audio detection may pick up some unwanted resources:
| Resource Type | How to Handle |
|---|---|
| Notification sounds | Filter by file size (usually very small) |
| Ad audio | Manually exclude or filter by domain |
| UI sound effects | Filter by file size |
| Background music | Decide whether to download based on needs |
Combine with Video Download
Some content has both video and audio versions:
- Podcasts sometimes have video versions
- Some courses provide separate video and audio tracks
- Choose appropriate type based on needs
File Naming
Downloaded audio files are named based on URL. If you want better naming:
- Manually rename after download
- Use file manager to batch rename
- Some download managers support custom naming rules
Troubleshooting
Audio Not Detected
| Cause | Solution |
|---|---|
| Page not refreshed | Refresh page and wait for audio to load |
| Audio not played | Click play button, play for a few seconds |
| Uses Web Audio API | Some sites use programmatic audio generation, not network requests |
| Encrypted stream | DRM-protected audio cannot be detected |
Downloaded File Cannot Play
| Cause | Solution |
|---|---|
| Incomplete download | Re-download, ensure network stable |
| Unsupported format | Try converting with FFmpeg or other tools |
| Corrupted file | Original file may have issues |
File Size Shows as Unknown
Some servers don't return Content-Length header:
- This is normal, doesn't affect download
- Actual size only known after download completes
- Streaming audio especially prone to this situation
